iFi Zen CAN Signature HFM Review

by Stuart Charles Black
iFi Zen CAN Signature HFM Review

Don't forget to share if you found it helpful!

Part of the iFi Zen Mini-Series!



Thank you to Lawrance over at iFi for the demo unit!

Greetings mate and Welcome aboard. Stuart Charles here, HomeStudioBasics.com helping YOU make sound decisions leading to a beautiful audio experience that will make you fall in love with music (NOT gear) all over again, so…

Video Discussion

Coming Soon!

In The Box

 Zen CAN Signature HFM (Amp)

RCA to RCA cables

Power Supply

Quick Start Guide

Warranty Card

Box #2

Zen CAN Signature HFM (DAC)

RCA to RCA Cables

USB Type-A to Type-B Cable

Power Supply

Balanced 4.4mm interconnect

Quick Start Guide

Warranty Card

Amp contents.

DAC contents.

Specifications & Features

Features (DAC)

  • Chip: 16 Core XMOS chip allowing full decoding of MQA and DSD256 on the same firmware due to the extra processing power of the chip.
  • New and improved low jitter clock with >20dB better performance.
  • Full MQA decoding
  • Formats: PCM/Bit Perfect DSD & DXD
  • Digital Inputs: USB 3.0 B (USB 2.0 Compatible)
  • Analogue Outputs: 4.4mm Balanced/RCA
  • Precision Analogue Volume Control
  • Input Voltage: DC5V2.5A
  • Input: USB3.0B Socket (USB2.0 Compatible)
  • Formats: 44.1/48/88.2/96/176.4/192/352.8/384kHz PCM, 2.8/3.1/5.6/6.2/11.2/12.4MHz DSD 353/384kHz DXD MQA
  • DAC: Bit-Perfect DSD & DXD DAC By Burr Brown
  • Line Section Output: Balanced 4.4mm: 2V/6.2V max. (variable) 4.2V fixed, UnBAL RCA: 1V/3.3V max. (variable) 2.1V fixed
  • Zout: ≤200 Ohm (BAL)/≤100 Ohm (UnBAL)
  • SNR: <-116dB(A) @ 0dBFS (BAL/UnBAL)
  • DNR: >116dB(A) @ -60dBFS (BAL/UnBAL)
  • THD+N: <0.0015 @ 0dBFS (BAL/UnBAL)
  • Power Consumption: ~0.5W (No Signal)/~2.5W (Max Signal)
  • Dimensions: 158 x 117 x 35 mm (6.2″ x 4.6″ x 1.4″)
  • Net Weight: 505g (1.11 lbs)
  • Warranty Period: 12 Months

Features (Amp)

  • Analogue Inputs: 4.4mm Balanced/3.5mm Single-Ended/RCA.
  • Analogue Outputs: 4.4mm Balanced.
  • Headphone Outputs: 4.4mm Balanced/6.3mm Single-Ended.
  • Headphone corrections optimized for HIFIMAN Headphones.
  • XSpace opens up your music to give you the spaciousness of a live-concert atmosphere.
  • Precision Analogue volume control.
  • Input voltage: 5V/2.5A
  • Max Output: Balanced – >15.1V/385mW (@600 Ohm), >11V/1890mW (@64 Ohm), >6.2V/1200mW (@32 Ohm), Single-ended – >7.6V/98mW (@600Ohm), >7.4V/870mW (@64Ohm), >7.2V/1600mW (@32 Ohm),
  • THD & N: <0.005% (@100mW/1.27V 16Ohm
  • SNR: >121dBA (@15.2V)
  • Max. Input: 7.4V RMS (Balanced)/3.8V RMS (RCA)/1.92V RMS (3.5mm)
  • Gain: 0dB, 6dB, 12dB and 18dB
  • Frequency Response: 10Hz – 200kHz (-3dB)
  • Power consumption: ~5W (No Signal)/~12W (Max Signal)
  • Dimensions: 158 x 117 x 35 mm (6.2″ x 4.6″ x 1.4″)
  • Net Weight: 550g (1.21 lbs)
  • Warranty Period: 12 Months

Ah, yes. Another iFi Stack; this time specifically for HIFIMAN headphones.

I’m not going to lie, when my friend Marko first leaked this to me my initial reaction was an *extreme eye-roll*.

Disclaimer: Before you read this and get upset, just remember it’s only one guy’s opinion. Respond/React accordingly.

You may remember my complete disgust for the 6XX signature stack.

I thought it was overpriced and unnecessary, especially when you can just save a bunch of money and buy a regular silver Zen CAN.

I still stand by that, as I would in no way ever fork over upwards of $600 for what is essentially a button that says “6XX.”

And especially not with the amount of experience I have with Amps & DACS now.

It was a glorified bass boost and nothing more. I also didn’t find it to enhance or add to the sound of the headphones.

To me, it was useless, with the overall sound of the 2 (Silver vs. Signature) being the same.

The HFM (HIFIMAN) stack?

iFi Zen CAN Signature HFM Review

Well, it’s a bit more complicated this time around.

40 albums + a playlist later I can tell you that it actually does make HIFIMAN headphones sound a bit better. Yes, I actually listen to a lot of music before I give my opinions on gear. Shocker, I know.

For me, the button essentially opens them up and creates some space for the instruments to breathe.

Aside from that, it just sounds better with the button. I tried to fight it but to no avail.

XSpace claims to “open up your music to give you the spaciousness of a live-concert atmosphere” (via website/box).

It does open things up to a degree, but it’s definitely not night and day. Between the 2, I prefer using the ‘HFM’ button more than I do the XSpace button.

I used both the DEVA, HE400se, and Arya, and I have to say that, unlike the 600 series in which I was hardly ever pressing the button, this time around I pretty much never turn it off.

The problem?

It’s still overpriced at around $300 for each piece (Zen CAN Amp + DAC). So you’re paying $600 total for what is still essentially a button.

I’m sorry, but if I was someone on the hunt for an Amp and DAC (i.e. not someone who reviews unhealthy amounts of flavor of the week products), you’d have to really convince me that the price was worth it beyond a slight improvement in sound for one specific type of headphone (HIFIMAN in this case).

That’s not to say it’s not a good product; it absolutely is. Everything that made the original Zen so groundbreaking is there. But it’s still unnecessary and excessive this time around – as most Amp/DACS tend to be.

If the price were something like $300-400 (as in, similar to the price of the original Zen + Silver Zen Can Amp), I would probably have no reservation in recommending it – especially since I do like the inclusion of the balanced interconnect. I thought that was a nice touch.

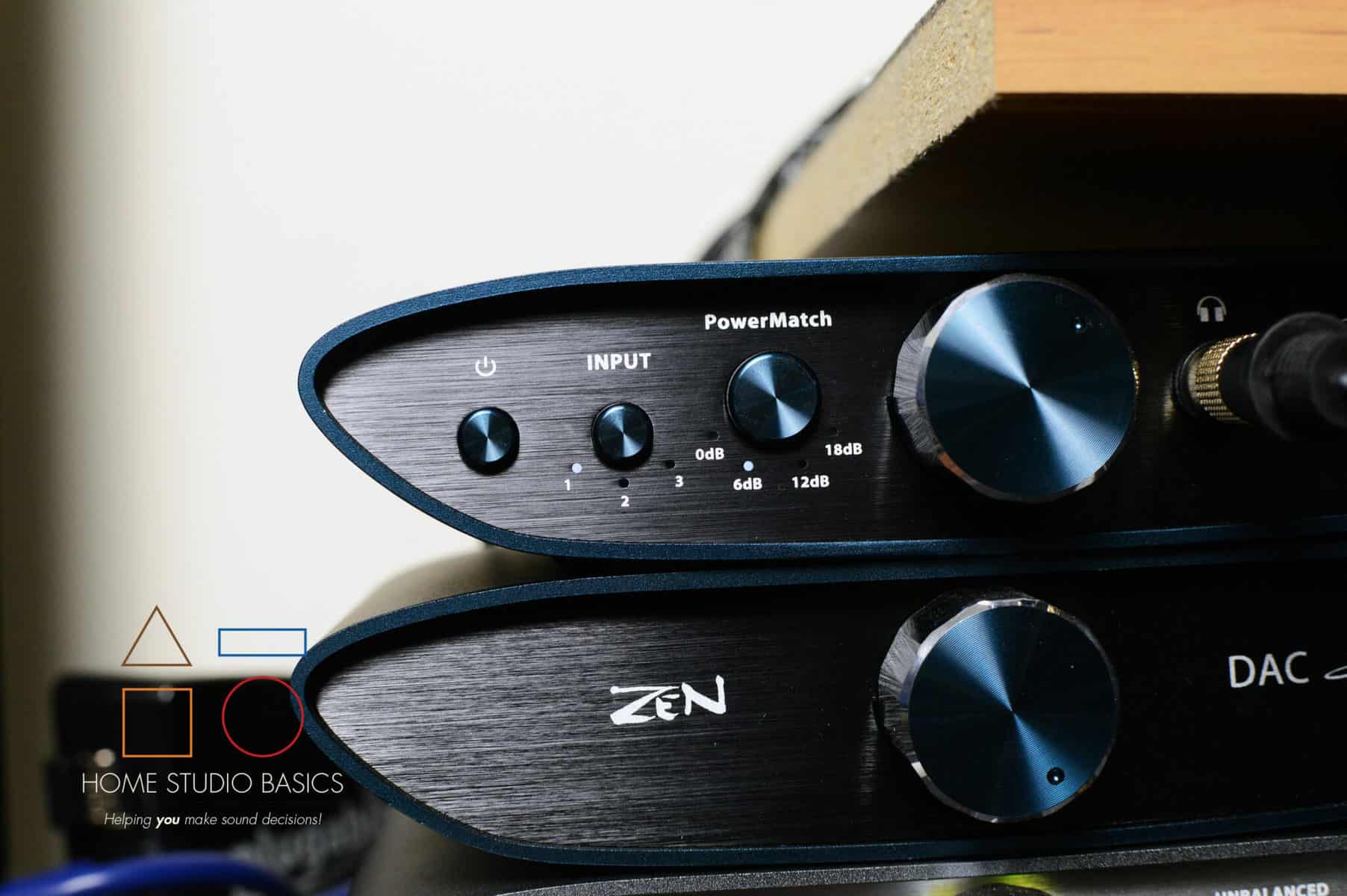

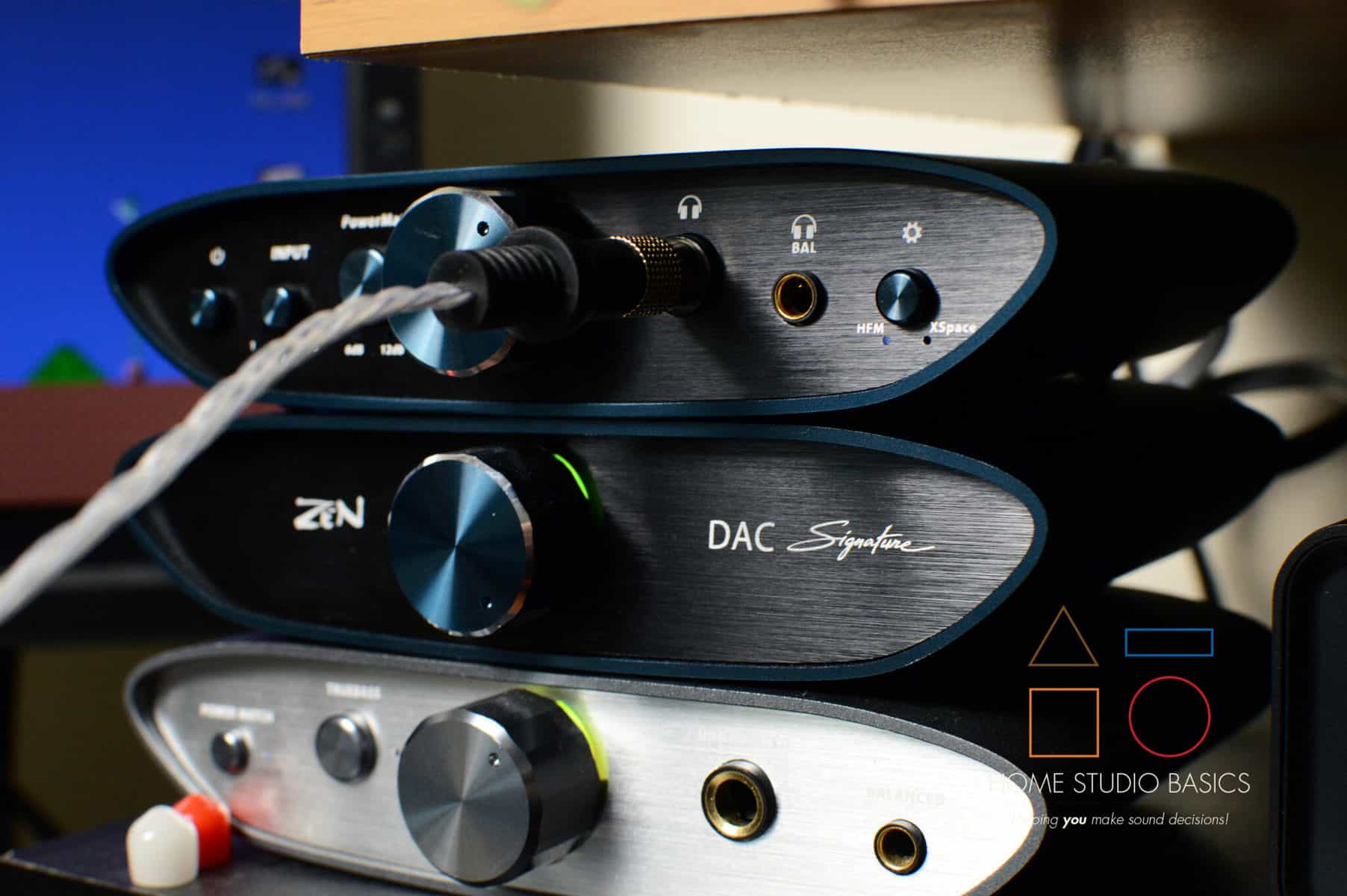

The features set this time around are the same; we’ve got 3 gain settings (6dB, 12dB, 18dB), the HFM button (in place of 6XX), Xspace enhancements, and a 4.4mm balanced option for your headphones.

iFi Zen CAN Signature HFM Review

iFi Zen CAN Signature HFM Review

iFi Zen CAN Signature HFM ReviewiFi Zen CAN Signature HFM Review

Inputs & Outputs

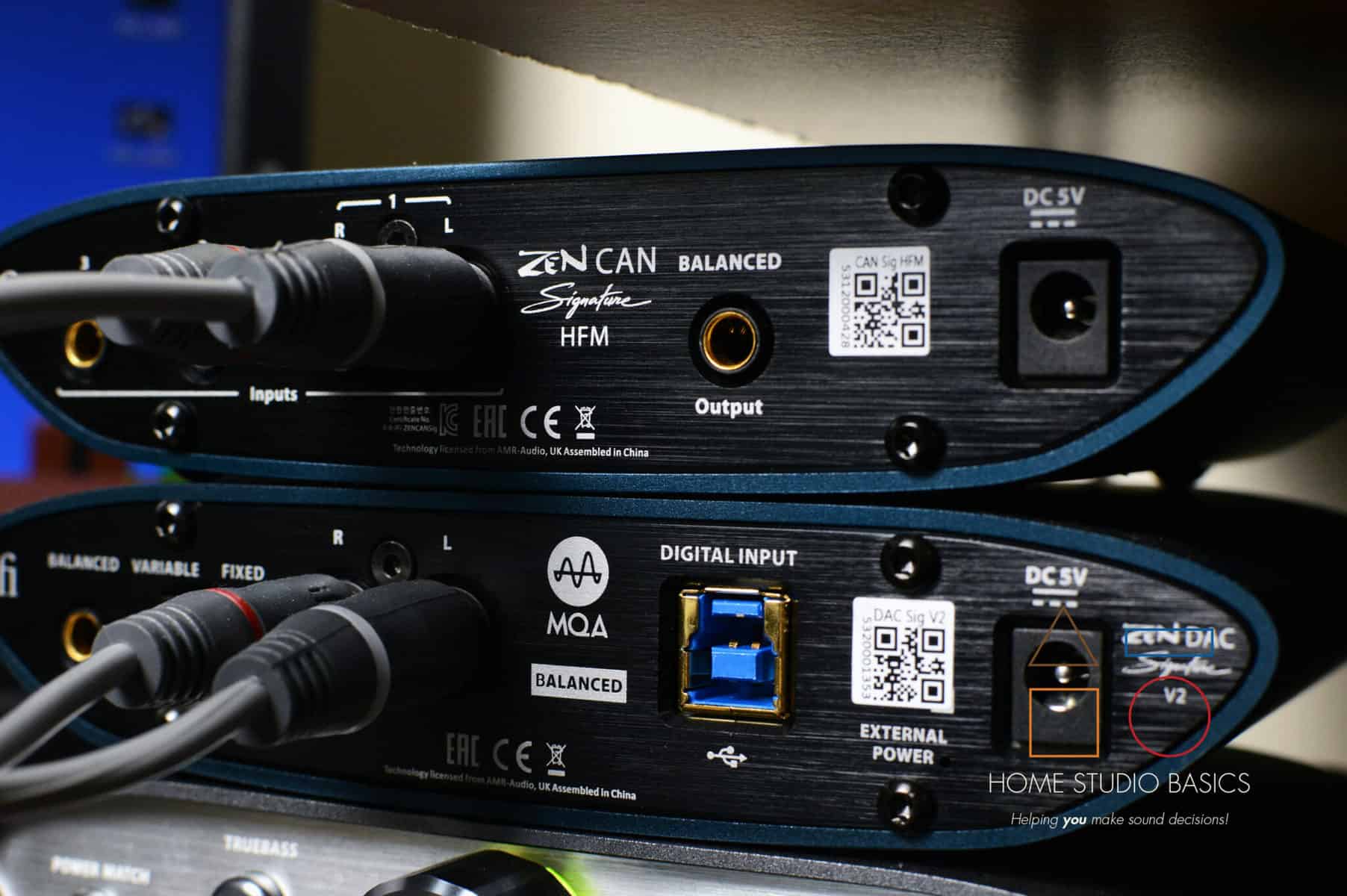

The back of the Amp reveals a 3.5mm and 4.4mm input, as well as a balanced 4.4mm output for use with separate speakers as well.

The Real Differences

I’ve said this for the last few years now (and I’m not going to ever let up) because new people reading need to understand; the way a song ultimately sounds at its core has mostly to do with how it was recorded, mixed, and mastered.

For instance, slenderbodies’ “Are We?” is modern pop and sounds like it – it’s crisp, snappy, and well-recorded. It’s polished and pristine sounding. It’s also mixed and mastered really well.

By contrast, an older recording such as Belle & Sebastian’s “The Boy With the Arab Strap” (1998), while by no means sounds awful, is definitely a step-down.

This is just one example. There are countless instances going back to the ’60s and ’70s (and even way before that).

It’s also a different type of music which is an important distinction when comparing Amps and DACS.

A “just okay” recording in many cases is no fault of the artist – rather, it represents a different era in music. That’s all.

Times have changed, and recordings do as well.

If I could make an analogy, I look at it as the progression from 8-bit NES to what we have today, or, older YouTube videos in 240p vs. the ridiculous resolutions available now via more advanced technology.

In the case of features, think of it this way: If you put lipstick (Amp/DAC enhancements) on a pig (poorly recorded music), it’s still a pig.

The music will still sound like sh**. This is especially apparent in the original Zen’s bass boost – just because you press that button doesn’t mean it’s going to jive with every track. Some tracks may benefit from it, others won’t.

Now, putting lipstick on an already beautiful female (well-recorded music) can certainly enhance the look (or in this case, the sound) to some extent.

But it may not. Some girls don’t need makeup and have immense natural beauty. In a similar vein, some songs don’t really need anything extra. They play well on their own as fine compositions.

So my advice, again, is to worry about the source first and then the other stuff later.

Zen CAN Signature HFM vs. Zen Amp/DAC Combo (Original)

As in the case of the other stacks (Signature 6XX and Regular Silver Stack vs. Original Zen), this time around it’s the same – there isn’t any difference in sound between the Signature HFM and the Original Zen.

The only real difference is the color; it’s a darker Teal instead of a Midnight Blue.

In the case of the near-identical sound, that happens to be fairly unsurprising considering all iFi Products use the Burr Brown chip (which I like and enjoy).

iFi Zen CAN Signature HFM Review

Final Word

What’s my advice?

I’d still go for an original Zen Combo and pair it with the Silver Zen CAN amp if you end up needing extra power for really demanding headphones. If not, the Zen on its own is perfectly fine. I still use one nearly every day.

Now, whether you opt for the Zen V2 (upgraded) or the regular entirely depends on if you’re a console gamer. Being that I am, I like having the V2.

I simply plug and play via USB and don’t need any additional wires. This makes it easy to transport between my studio and living room space.







Well, that’s about it for today my friend! I hope you’ve enjoyed this iFi Zen CAN Signature HFM Review, and came away with some valuable insight.

Questions? Comments? Requests? Did I miss the mark on something? Please let me know down below or Contact me!!

If you love what I do here and want to support the blog and channel in a more personal way, check me out on Patreon and discover all the value I have to offer you.

Is this product worth an investment? What are your thoughts on the hobby as a whole? I would love to hear from you. Until next time…

All the best and God bless,





-Stu
