Part of the iFi Zen Mini-Series!
Shout out to Lawrance and the folks over at iFi for their continued support in sending this demo unit!
Greetings mate and Welcome aboard. Stuart Charles here, HomeStudioBasics.com helping YOU make sound decisions leading to a beautiful audio experience that will make you fall in love with music (NOT gear), all over again, so…

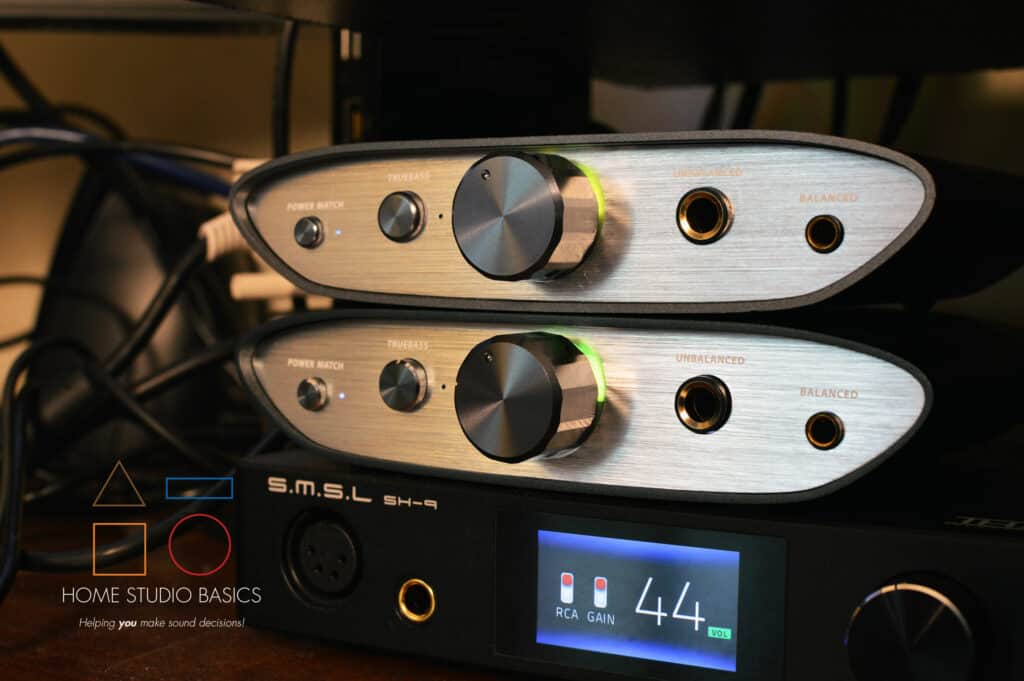

Let’s get right into the Zen vs. Zen V2 (Upgraded) and find out what the differences are.
Let’s take a look at the specs and what’s in the box:
In The Box
iFi Zen Amp/DAC Original
iFi AUDIO Zen DAC Desktop USB DAC and Headphone Amp
Blue USB Type-B Cable
RCA to RCA cable (not pictured)
Spec Sheet
Limited 1-Year Warranty
ifi Zen Amp/DAC V2 (Upgraded)
iFi AUDIO Zen DAC Desktop USB DAC and Headphone Amp
Blue USB Type-B Cable
RCA to RCA Cable
Spec Sheet
Limited 1-Year Warranty
Just act like I included the RCA to RCA cable in the first picture. 😛
So right off the bat, the packaging and accessories are the same.
Let’s take a gander at the backside.
Everything is the exact same except for a few things:
- The Zen V2 now uses the 16-core XMOS Chip which allows the product to fully decode MQA and run DSD256 on the same firmware due to the extra processing power of the chip. Related: What Is DSD In Audio?
- There’s a new and improved low jitter clock with > 20dB better performance.
Can I tell a difference?
We’ll get into that in a bit.
Specifications
Price: Check Amazon! | Check B&H!
Features
- Formats: PCM/Bit Perfect DSD & DXD
- Digital Inputs: USB 3.0B (USB2.0 Compatible)
- Analogue Outputs: 6.3mm Unbalanced / 4.4mm Balanced / RCA
- PowerMatch Adjustment for iEMs/ On & Over Ears
- TrueBass to add bass to IEMS
- Precision analogue volume control
Specifications
- Input: USB3.0 B Socket (USB 2.0 Compatible)
- Formats: 44.1/48/88.2/96/176.4/192kHz PCM, 2.8/3.1/5.6/6.2/11.2/12.4MHz DSD, 353/384kHz DXD
- DAC: Bit-Perfect DSD & DXD DAC By Burr Brown
Line Section
- Output: Audio RCA (UNBAL), 2.1V fixed, 1V/3.3V max. (variable)
- 4.4mm Pentacon (BAL): 4.2V fixed, 2V/6.2V max. (variable)
- Zout: <=100 Ohm (UNBAL), <=200 Ohm (BAL)
- SNR: <-116dB (A) @ 0dBFS (UNBAL/BAL)
- DNR: >116dB(A) @ -60dBFS (UNBAL/BAL)
- THD+N: <0.0015% @ 0dBFS (UNBAL/BAL)
Headpone Section
- Output: 6.3mm (UNBAL), 1V/3.3V max., 12 – 300 Ohm Headphone
- 4.4mm Pentaconn (BAL), 2V/6.2V max., 12 – 600 Ohm Headphone
- Output Power: UNBAL>280mW @ 32R, >36mW @ 300R, BAL >380mW @ 50R, >70mW @ 600R
- Output Impedance: <1 Ohm (UNBAL/BAL)
- THD & N: <0.005% (125mW @ 32R)
- SNR: >113dBA (3.3V UNBAL/6.2V BAL)
- Power Consumption: No Signal – 0.5W, Max Signal – 2.5W
- Dimensions: 117(l) x 100(w) x 30(h)mm
- Weight: 491g (1.08 lbs.)
- Warranty Period: (12 months)
iFi Zen Amp/DAC
Build
First, we’ll get into the build if you’re not familiar with this product.
I said it in 2019 and I’ll say it again, The Zen is one of (if not the best) built products I’ve ever tested and what’s astonishing is how well it’s built for the price.
A lot of cheaper products have build qualities to match, but the Zen is rather hefty and durable coming in at just a shade over a pound (1.08 lbs.)
The polygonal-inspired volume pot is still a dream to turn, and all connections feel solid and robust.
Front Panel
On the front, we’ve got a power match, TrueBass, a 4.4mm balanced input as well as your standard 1/4″ jack.
Back Panel
The back reveals the same RCA outputs, USB 3.0 socket, and DC 5V power jack.
Keep in mind you don’t technically need a power supply to run the Zen.
I’ve always used bus power from my laptop. Just plug it in and it’s ready to go immediately.
With that, how does it sound?
Sound
The sound of the original Zen was smooth and detailed with a touch of warmth – utilizing iFi’s favorite Burr Brown chip.
I still believe this is one of the best purchases a budding audiophile can make when just starting out in the hobby.
In fact, I’ve demoed 50+ Amps & DACS at the time of this writing and there aren’t many I’d consider demonstrably better than a Zen – iFi’s Diablo included.
Some people (who will not be named) have accused the Zen of being underpowered, but I personally have always felt like that was a load of horse shit.
With power match on, you’ll be around 12-2 ‘o clock with most headphones.
I’ve never had to push it past that for any reason, so the underpowered claims tend to be over-exaggerated.
If you’re hearing is damaged beyond repair, sure, it may not have enough power.
But for people who value their ears, it’s just fine.
Be wary of people who try and describe the sound of a DAC using lots of word salad.
They’re likely just word vomiting and/or trying to fill up blank space.
iFi Zen vs. Zen V2
It’s the same great sound.
Lawrance, the rep @ iFi told me through email,
“I’ll get one sent your way. It’s mostly just some component upgrades and upgrading it to an MQA decoder rather than just a renderer.”
There were a few instances where I felt like the V2 version was a tad more refined/clear, but it could have just been my imagination and/or a placebo in thinking the roughly $30 increase in price makes the V2 sound better.
It doesn’t. And that’s completely fine.
If you do run MQA through Tidal, then yeah, it may be worth it to get the V2.
Listeners who don’t run Tidal may not need this one.
In that case, I would just go with the original.
The subject of MQA has been a hotly debated topic of late, and let’s just say it’s kind of complicated. Lol.
Gaming
What’s even cooler is that iFi just released a firmware update allowing you to use the Zen V2 with your Playstation via USB slot.
Just go here, use the dropdown, find Zen DAC V2, and follow the prompts!
I’ve been gaming with it since I received the comment below from “Ale” and having a blast! If you game and watch a lot of film, the Zen V2 is perfect.
What you’ll love most is that it’s plug-and-play and also sounds really crisp and clean.
In writing the 560S review, I decided to compare it to some other headphones I have here using the Zen as the Amp/DAC.
In short, it’s been a lot of fun!
Headphones used include the 560S, K702, K612, HD600, and HD58X.
Video Discussion
Don’t forget to leave me some love and subscribe <3
Final Word
Update for 2023 and Beyond:
The original Zen at $130 was a steal and underpriced but has now been discontinued.
At around $160, the upgraded Zen V2 was still a good value as I thought an extra $30 for console compatibility was fair.
It’s now ballooned to almost $200, and its current price isn’t worth it in my opinion.
In other words, why did the price go up another $30?
I will be keeping a close eye on the price and if it comes back down, I’ll recommend it again.
What do I recommend instead?
Many will be familiar with my other entry-level recommendation in FiiO’s K5 Pro.
Well, they too have since come out with an updated version (this time using the ESS 9038 chip) which is priced similarly to the Zen V2.
Do I feel as though the AKM version of the K5 Pro ($150) is a better value than the Zen V2 at roughly $190?
Without question.
Is the upgraded K5 Pro ESS worth $50 more than the AKM version? I can’t say definitively as I’m still waiting on the unit to arrive, but probably not even though I do love the ESS chip and have said as much in many articles and videos.
You can also look to the K7 if you plan to run balanced headphones.
While I do find it interesting to compare the sound of DACS, I generally recommend them based on features and versatility – not sound.
Given that, the K5 Pro ESS is still a better value than the Zen based on versatility alone, but, you can still purchase the K5 Pro AKM version as of now, which I will link below.
I will update this article as new information comes to light and things inevitably change.
Interested in exactly why the K5 is among my top dacs for beginners?
Learn More:
Well, that’s about it for today my friend! I hope you’ve enjoyed this iFi Zen DAC/Amp vs. Zen V2 upgraded comparison and gained some valuable insight.
Questions? Comments? Requests? Did I miss the mark on something? Please let me know down below or Contact me!!
If you love what I do here and want to support the blog and channel in a more personal way, check me out on Patreon and discover all the value I have to offer you.
Which of these are you going to purchase? Do you believe the Zen V2 is worth almost $200? I would love to hear from you. Until next time…
All the best and God bless,
-Stu
